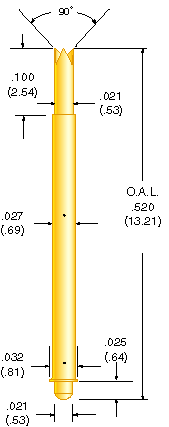

DOUBLE-ENDED BGA PROBE 10-1-027-520
.040 (1.0) PITCH/.045 (1.14) WORKING STROKE

Tool Bar

Probe Technical Data
Mechanical
MINIMUM CENTERS:
.040 (1.0)
FULL TRAVEL: .070 (1.78)
WORKING TRAVEL: .045 (1.14)
OPERATING LIFE: 200,000 cycles
Electrical
Consult Factory

Material and Finishes
PLUNGER:
Heat treated beryllium copper
or steel hardened to 55 - 60RC, 24 Kt gold
plated over nickel
BARREL: Nickel silver with 24 Kt gold
plated ID and OD over nickel
SPRING: 24 Kt gold plated
Spring Force +/- 20% oz. (grams)

Spring Type

Preload

Working Travel

 -0
.1 (2.8) .39 (11)



10-1-027-520
