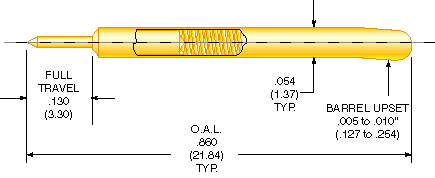

GENRAD INTERFACE PROBE
.075 (1.91) CENTERS
.130 (3.30) STROKE

GIP60-B
HIGH PERFORMANCE
ALL GOLD

Tool Bar

Probe Technical Data
Mechanical
MINIMUM CENTERS:
.075 (1.91)
FULL TRAVEL: .130 (3.30)
WORKING TRAVEL: .087 (2.21)
OPERATING LIFE: 1,000,000 cycles
Electrical
MAXIMUM CURRENT:
5 amps continuous at working travel, non-inductive
RESISTANCE: At 35 mA test current 18 mOHMS mean
Materials and Finishes
PLUNGER:
Heat treated beryllium copper 24 Kt gold plated over nickel
BARREL: Nickel silver
24 Kt gold plated ID and OD over nickel
SPRING: Music Wire, 24 Kt gold plated over nickel



GIP60-B
