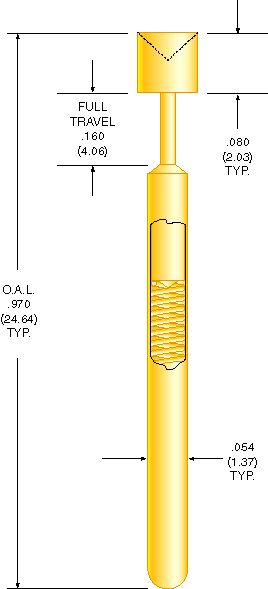

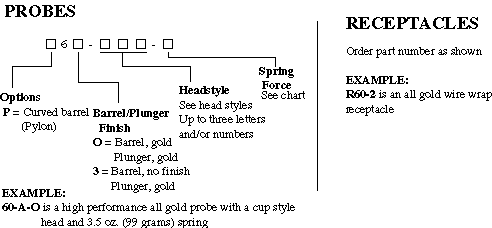

BARE BOARD TEST PROBES
.100 (2.54) CENTERS
.160 (4.06) STROKE

SERIES 60
HIGH PERFORMANCE ALL GOLD
ECONOMY
63

Tool Bar

Probe Technical Data
Mechanical
MINIMUM CENTERS:
.100 (2.54)
FULL TRAVEL: .160 (4.06)
WORKING TRAVEL: .107 (2.72)
OPERATING LIFE: 1,000,000 cycles

Electrical
MAXIMUM CURRENT:
5 amps continuous
at working travel, non-inductive
RESISTANCE: At 35 mA test current
60 18 mOHMS mean
63 60 mOHMS mean

Materials and Finishes
PLUNGER:
Heat treated beryllium copper
60 24 Kt gold plated over nickel
63 24 Kt gold plated over nickel
BARREL: Nickel silver
60 24 Kt gold plated ID and OD over nickel
63 No Finish
SPRING: Music Wire



Spring Force +/- 20% oz. (grams)

 Spring Type

Preload

@ 2/3 Travel

-0

1.7 (48)

3.5 (99)

-1

2.7 (77)

5.4 (153)

-2

2.8 (79)

6.4 (181)

-3

5.0 (142)

10.0 (284)

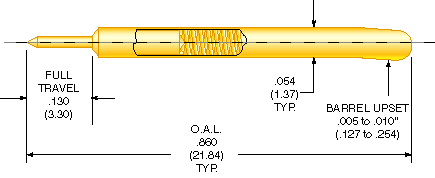

GIP60-B











Receptacles



Receptacle Technical Data

The top of the barrel sets flush with the top of the receptacle.
MOUNTING HOLE SIZE: .067/.069 (1.71/1.75)
diameter, #51 (1.75 mm) drill
WIRE GAUGE: 22-26 AWG
CONNECTIONS:
R60-1/R63-1/R60FL-1/R63FL-1
Crimp
R60-2/R63-2/R60FL-2/R63FL-2 Vacuum tight wire wrap
R60-3/R63-3/R60FL-3/R63FL-3 Solder cup
R60-4/R63-4/R60FL-4/R63FL-4 Vacuum tight round pin

Materials and Finishes
RECEPTACLE BODY:
Nickel silver
FINISH: (R60 style) 24 Kt gold plate
(R63 style) No finish
WIRE WRAP AND ROUND PIN:
Phosphor bronze, 24 Kt gold plate

INSERTION TOOLS:
IT60 Flush
IT60 Adjustable
CRIMP TOOLS 22-26 AWG:
CT60
