Test Connections Inc.

LUTHER & MAELZER
BARE BOARD TEST PINS

SERIES LMP
VZ

Tool Bar

The pins below are used in Luther & Maelzer bare board test systems. Materials and Finishes
MATERIAL: Heat treated beryllium copper and music wire
FINISH: 24 Kt gold plate over hard electroless nickel

 The LMP13-VZ is a direct replacement for the Luther & Maelzer 13-VZ plastic molded ball pin.

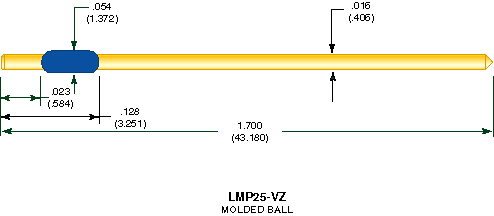

 The LMP25-VZ is a direct replacement for the Luther & Maelzer 25-VZ plastic molded ball pin.


 The LMP45-VZ is a direct replacement for the Luther & Maelzer 45-VZ plastic molded ball pin.


 The LMP50-VZ is a direct replacement for the Luther & Maelzer 50-VZ one piece machined pin.


 The LMP65-VZ is a direct replacement for the Luther & Maelzer 65-VZ one piece machined pin.
