SMT BARE BOARD TEST PROBES

SERIES 31

.030 (0.76) CENTERS/.060 (1.5) STROKE

Tool Bar

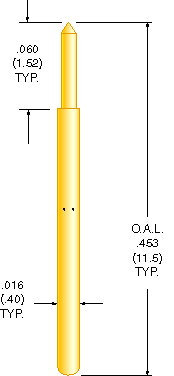

Probe Technical Data
 Mechanical
MINIMUM CENTERS: .030 (0.76)
FULL TRAVEL: .060 (1.5)
WORKING TRAVEL: .040 (1.0)
OPERATING LIFE: 1,000,000 cycles

Electrical
MAXIMUM CURRENT: 1 amps continuous
at working travel, non - inductive
RESISTANCE: At 35 mA test current,
50 mOHMS mean

Material and Finishes
PLUNGER:Heat treated beryllium copper
24 Kt gold plated over nickel
BARREL: Nickel silver with 24 Kt gold
plated ID and OD over nickel
SPRING: Music wire

Spring Force +/- 20% oz. (grams)

Spring Type

@ 2/3 Travel

Standard

1.4 (40)

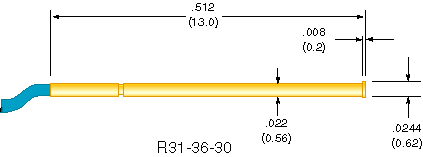

Receptacle Technical Data

Barrel extends from the top the receptacle by
.020.
MOUNTING HOLE SIZE: .0225 (.56)
diameter, # 74 (.55 mm) drill
WIRE GAUGE: 30 AWG
CONNECTIONS:
R31-36-30 Crimped with 36
inches of 30 AWG wire attached
(other lengths upon request)

Materials and Finishes
RECEPTACLE: Nickel silver,
with 24 Kt gold plate



To Order
PROBE:
Select tip style as shown
RECEPTACLE:
Order Part number as shown

INSULATING SLEEVE FOR RECEPTACLE:
Order part number, R31/35SL
