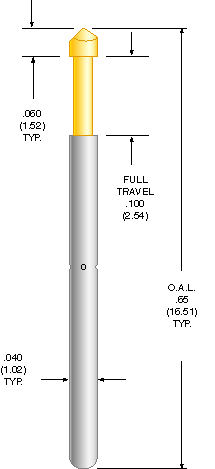

Probe Technical Data
Mechanical
MINIMUM CENTERS: .075 (1.91)
FULL TRAVEL: .100 (2.54)
WORKING TRAVEL: .067 (1.70)
Electrical
MAXIMUM CURRENT: 8-10 amps at working travel, non-inductive
RESISTANCE: At 35 mA test current,
35 mOHMS mean
Materials and Finishes
PLUNGER: Heat treated beryllium
copper, 24 Kt gold plated over nickel
BARREL: Nickel silver with silver
plated ID and OD over nickel
SPRING: Music wire, silver plated
over nickel.
Spring Force +\-20% oz. (grams)
| Spring Type |
Preload |
@ 2/3 Travel |
| Standard |
1.1 (32) |
2.5 (71) |
| - 1 |
1.6 (45) |
3.8 (108) |
|
 |
Receptacle Technical Data
The top of the barrel sets flush with the top of the receptacle.
MOUNTING HOLE SIZE: .055
(1.4) diameter, #54 (1.4 mm) drill
WIRE GAUGE: 24-28 AWG
CONNECTIONS:
R40-1/R40FL-1 Crimp
R40-2/R40FL-2 Wire wrap
R40-3/R40FL-3 Solder cup
R40-5/R40FL-5 Wire wrap
Material and Finishes
RECEPTACLE: Nickel silver,
with 24 Kt gold plate
WIRE WRAP PIN: Phosphor Bronze
24 Kt gold plate over nickel |
 |
 |
| PART NO. |
DIM. "A" |
DIM. "B" |
| R40-2/R40FL-2 |
1.06 (26.92) |
.370 (9.40) |
| R40-5/R40FL-5 |
.950 (24.13) |
.260 (6.60) |
|
|
