SERIES 44

Probe Technical Data
Mechanical

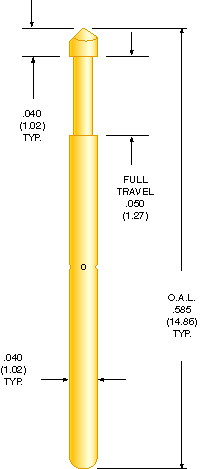

MINIMUM CENTERS: .075 (1.91)
FULL TRAVEL: .050 (1.27)
OPERATING LIFE: 1,000,000 cycles

Electrical
MAXIMUM CURRENT: 3 amps continuous
at working travel, non-inductive
RESISTANCE: At 35 mA test current,
35 mOHMS mean

Materials and Finishes
PLUNGER: Heat treated beryllium
copper, 24 Kt gold plated over nickel
BARREL: Nickel Silver with 24 Kt gold
plated ID and OD over nickel
SPRING: Music wire

Spring Force +/- 20% oz. (grams)

Spring Type	Preload	@ 2/3 Travel
Standard	1.1 (32)	2.2 (62)
-1	1.6 (45)	3.2 (91)

Receptacle Technical Data

The top of the barrel sets flush with the
top of the receptacle.
MOUNTING HOLE SIZE: .055
(1.4) diameter, #54 (1.4 mm) drill
WIRE GAUGE: 24 - 28 AWG
CONNECTIONS:
R40-1/R40FL-1 Crimp
R40-2/R40FL-2 Wire wrap
R40-3/R40FL-3 Solder cup
R40-5/R40FL-5 Wire wrap

Materials and Finishes
RECEPTACLE: Nickel silver,
with 24 Kt gold plate
WIRE WRAP PIN: Phosphor Bronze,
24 Kt gold plate over nickel

To Order
PROBE:
Select tip style and spring force
EXAMPLE: 44-A has a cup style tip
with a 2.2 oz. (62 grams) spring
44-A-1 has a 3.2 oz. (91 grams) spring
RECEPTACLE:
Order part number as shown
INSERTION TOOL:
IT40/44 Flush
CRIMP TOOL 24-28 AWG
CT40

PART NO.	DIM. "A"	DIM. "B"
R40-2/R40FL-2	1.06 (26.92)	.370 (9.40)
R40-5/R40FL-5	.950 (24.13)	.260 (6.60)
