Test Connections Inc.

1.1" SOLID TRANSLATION PINS

SERIES 61

Tool Bar

Translation pins are used in bare board test systems
to minimize the dedicated test fixture cost and to
facilitate testing of bare PC boards not laid out on a
standard .100 x .100 grid pattern. Test Connections

offers pins of several sizes and materials with a
number of tip configurations. Custom designs can
also be supplied.

 STANDARD PINS
For use with Pyramid, Serrated and Cup
Style Probe Heads.


  MODIFIED STANDARD
For use with Cup and Serrated Style
Probe Heads. The smaller back end
allows pin to go deeper into a Cup
Head.





  PYRAMIDS

PART NO.

DIA. "A"

61-005
61-006
61-007
61-008
61-033
61-068

.062 (1.57)
.075 (1.91)
.100 (2.54)
.130 (3.30)
.156 (3.96)
.200 (5.08)

 PYRAMIDS

PART NO.

DIA. "A"

61-015
61-016
61-017
61-018

.062 (1.57)
.075 (1.91)
.100 (2.54)
.130 (3.30)
 61-009
SPHERICAL
 61-019
SPHERICAL
 61-029
CUP

 61-030
CUP

 61-027
SERRATED

 61-028
SERRATED


MATERIAL:
Brass Alloy 360.

PLATING:
61-005
Nickel Plated.
All Others, Gold Plated.

RECOMMENDED HOLE SIZE -
1/4" Thick Universal Grid Plate, .072 (1.83) Dia.
1/8" Thick Translation Plate, .055 (1.40) Dia.

 MATERIAL:
Brass, Alloy 360

PLATING:
Standard, Nickel Plated.
Alternate, Gold, add -G1
to part number. Example;
61-015-G1.

RECOMMENDED HOLE SIZE -
1/4" Thick Universal Grid Plate, .072
 (1.83) Dia.
1/8" Thick Translation Plate, .055 (1.40) Dia.



 TOP SIDE ACCESS TEST PIN

For use with machines that have spring probes in the top. Heat treated beryllium copper, gold plated.

.050 CENTER PINS
For use with Cup and Serrated Style Probe Heads.
 PYRAMIDS

PART NO.

DIA. "A"

61-024
61-047
61-026
61-066

.029 (.74)
.035 (.89)
.038 (.97)
.047 (1.19)
CONES

PART NO.

DIA. "A"

61-023
61-054

.029 (.74)
.035 (.89)
61-025
SPHERICAL

61-046
SERRATED


MATERIAL:
Heat Treated Beryllium
Copper.

PLATING:
Standard, Gold Plated.
Alternate, Nickel, add - N1
to part number.
Example; 61-023-N1.

RECOMMENDED HOLE SIZE -
1/4" Thick Universal Grid Plate, .072 (1.83) Dia.
1/8" Thick Translation Plate,
.027 (.69) Dia.


Test Connections Inc.

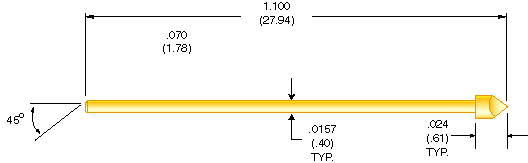

1.1" SOLID TRANSLATION PINS
FOR USE WITH .050 CENTER GRID

SERIES 61

Tool Bar

Translation pins are used in bare board test systems
to minimize the dedicated test fixture cost and to
facilitate testing of bare PC boards not laid out on a
standard .075 x .075 or .050 x .050 grid pattern. Test
Connections offers pins of several sizes and tip
condigurations. Custom designs can also be supplied.

MATERIAL:
Hardened Beryllium Copper.

PLATING:
Gold plated over hard nickel.
