Probe Technical Data

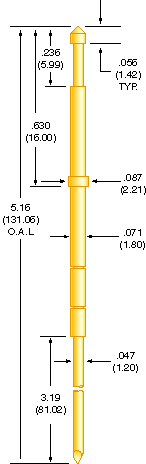

Mechanical
MINIMUM CENTERS: .100 (2.54)
FULL TRAVEL: .180 (4.57)
WORKING TRAVEL: .120 (3.05)
OPERATING LIFE: 1,000,000 cycles
Electrical
MAXIMUM CURRENT: 3 amps continuous
at working travel, non - inductive
RESISTANCE: At 35 mA test current,
50 mOHMS mean
Material and Finishes
PLUNGER: Heat treated beryllium
copper,
FINISH:
-2E / -2P Hard nickel plated
-2D / -2E138 24 Kt gold plated,
BARREL: Phosphor bronze, nickel plated
SPRING: Stainless steel, silver plated
PIN: Music wire, hard nickel plated
Spring Force +/- 20% oz. (grams)
| Spring Type |
Preload |
@ 2/3 Travel |
| Standard |
6.6 (187) |
10.0 (284) |
To Order
PROBE:
Select tip style as shown.
|
