SERIES
80

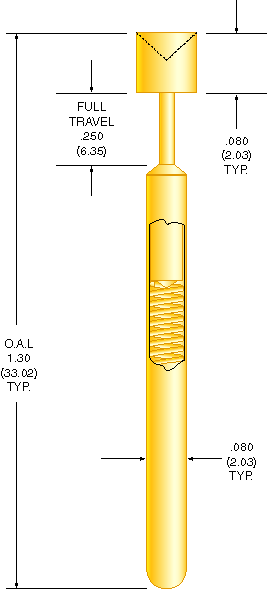

Probe Technical Data
Mechanical
MINIMUM CENTERS: .125 (3.18)
FULL TRAVEL: .250 (6.35)
WORKING TRAVEL: .167 (4.24)
OPERATING LIFE: 1,000,000 cycles

Electrical
MAXIMUM CURRENT: 6 amps continuous
at working travel, non-inductive
RESISTANCE: At 35 mA test current,
35 mOHMS mean

Materials and Finishes
PLUNGER: Heat treated beryllium
copper, 24 Kt gold plated over nickel
BARREL: Nickel silver with 24 Kt gold
plated ID and OD over nickel
SPRING: (Standard) Beryllium copper,
silver plated. (-1) Stainless steel,
silver plated

Spring Force +/- 20% oz. (grams)

Spring Type	Preload	@ 2/3 Travel
Standard	1.6 (45)	4.5 (128)
-1	2.7 (77)	6.5 (184)

Receptacle Technical Data

The top of the barrel sets flush with the top of the receptacle
MOUNTING HOLE SIZE: .094/.096 (2.39/
2.44) diameter, #41 (2.4 mm) drill
WIRE GAUGE: 22-26 AWG
CONNECTIONS:

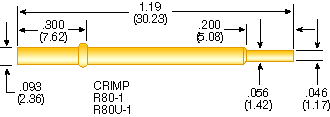

R80-1/R80U-1 Crimp

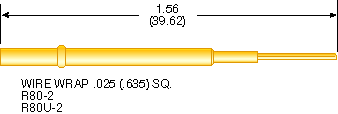

R80-2/R80U-2 wire wrap
R80-3/R80U-3 Solder cup

Materials and Finishes
RECEPTACLE BODY: Nickel silver
FINISH: (R80 style) 24 Kt gold plated
(R80U style) Unplated
WIRE WRAP PIN:
Phosphor bronze, 24 Kt gold plate

To Order
PROBE:
Select tip style and spring force
EXAMPLE: 80-A has a cup style tip
with a 4.5 oz. (128 gram) spring
80-A-1 has a 6.5 oz. (184 grams) spring
RECEPTACLE:
Order part number as shown

INSERTION TOOL:
IT80 Flush
CRIMP TOOL 22-26 AWG
CT80
