QuickFix Top-Bottom Alignment Assembly



 QF140/250B
Top Bottom Alignment Bushing









QF187/375AP
Top Bottom Alignment Assembly



MATERIAL
 Pin

 Hardened Drill Rod
 Bushing

 Hardened Drill Rod
 Housing

 Delrin
 Spring

 Nickel Plated Music Wire
 * Spring Force 8 Lbs. (3.6 Kg.)

Recommended Fixture Drill Sizes

 Part Number

 Mounting Hole
Drill Diameter
 QF187/375AP (Housing)  25/64 .3906 (9.92)
 QF187/375AP (Pin)  #11 .191 (4.85)
 QF140/250AP (Bushing)  .248 (6.30)

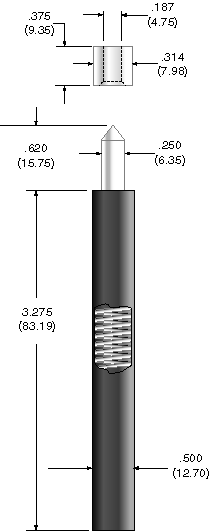

QuickFix Top-Bottom Alignment Assembly



 QF375/314B
Top Bottom Alignment Bushing









QF250/500AP
Top Bottom Alignment Assembly



MATERIAL
 Pin

 Hardened Drill Rod
 Bushing

 Hardened Drill Rod
 Housing

 Delrin
 Spring

 Nickel Plated Music Wire
 * Spring Force 8 Lbs. (3.6 Kg.)

Recommended Fixture Drill Sizes

 Part Number

 Mounting Hole
Drill Diameter
 QF250/500AP (Housing)  .505 (12.83)
 QF250/500AP (Pin)  .252 (6.40)
 QF375/314AP (Bushing)  5/16".3125 (7.94)
