Upgrading or Replacement of Electrical Tester Grid Field

TCI can furnish grid spring probes for most Bare Board Electrical Testers in production at most Printed Circuit Board Manufactures. Look for your model of Bare Board Tester in the following list and call TCI for current price quotation.

ATG Cassette Spring Probes
	Model A1000, Model A1500, Model A2000

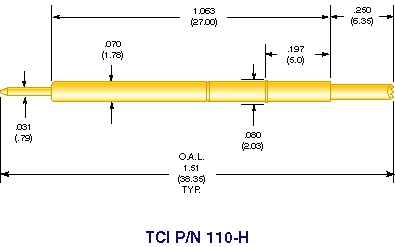

		TCI P/N 110-H (See Series 110 for specifications)
CircuitLine Spa
	Model Precise 2S,

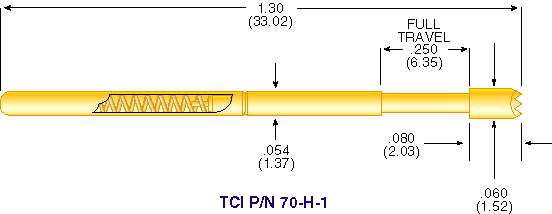

		TCI P/N 70-H-1 (See Series 70 for specifications)
Everett/Charles (ECT)
	Kryterion Series, Model 400, Model 500, Model 4000, Model 5000
		TCI P/N 70-H-1 (See Series 70 for specifications)
	Model ECT 9090
		TCI P/N 70-H-1
Fastek, Inc.
	Model 110, Model 200, Model 300
		TCI P/N 70-H-1 (See Series 70 for specifications)
Luther & Maelzer
	Model LM100/10A, LM100/11A (Picomat), LM100/22A (Megamat)

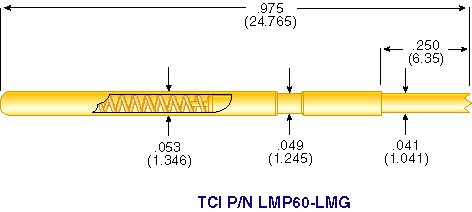

		TCI P/N LMP60-LMG
Trace Instruments, Inc.
	Model 916, Model 924, Model 948, Model 9000, Model 9040
		TCI P/N 70-H-1 (See Series 70 for specifications)
Testronics
	Model 101A, Model 104A
		TCI P/N 70-H-1 (See Series 70 for specifications)
Test Technology, Inc. (TTI)
	Model 3400, Model 1400, Model 2600

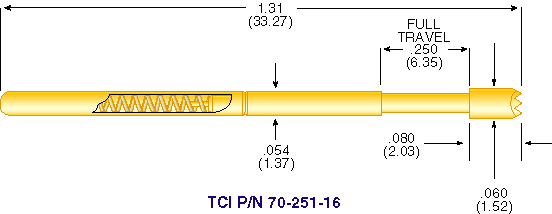

		TCI P/N 70-251-16
	Model 9600

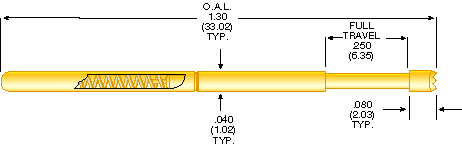

		TCI P/N 43-H-1

If you do not see your tester listed, call TCI for assistance.

TCI P/N 43-H-1
